A 38-year-old Sub-Zero 500 Series freezer in Henderson had a seized compressor and an aging sealed system still charged with R12, a refrigerant no longer produced. We rebuilt the sealed system with a new OEM compressor, evaporator, heat exchanger and drier, flushed out the old oil, retrofitted it to a modern refrigerant and recharged it by weight. The freezer is running at -5°F again — a fraction of the cost of a new Sub-Zero, which can exceed $15,000.
| Appliance | Sub-Zero 500 Series freezer, built in the 1980s (38 years old) |
|---|---|
| Location | Henderson, NV |
| Root cause | Seized compressor, aging evaporator, R12 system |
| Repair | OEM compressor, evaporator, heat exchanger and drier; system flush; R12 retrofit; recharge by weight |
| Result | Running at -5°F on modern, eco-friendly refrigerant |

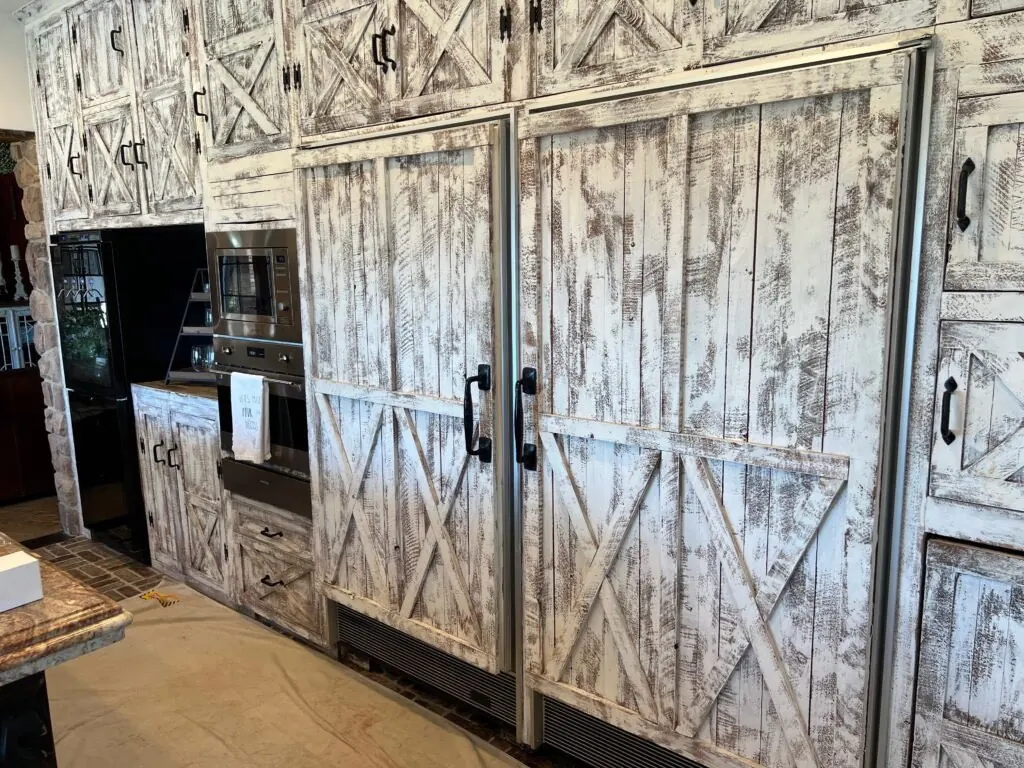

The Sub-Zero 500 Series is a legendary built-in refrigerator, but even the best engineering eventually needs expert work. This one was 38 years old — the kind of unit most companies would call unfixable.
A full rebuild is the most intensive repair an appliance can get: the pressurized cooling system is opened, contaminated or worn components are removed and new parts are installed to restore factory-spec cooling. On a 38-year-old unit, a simple recharge wasn't enough.

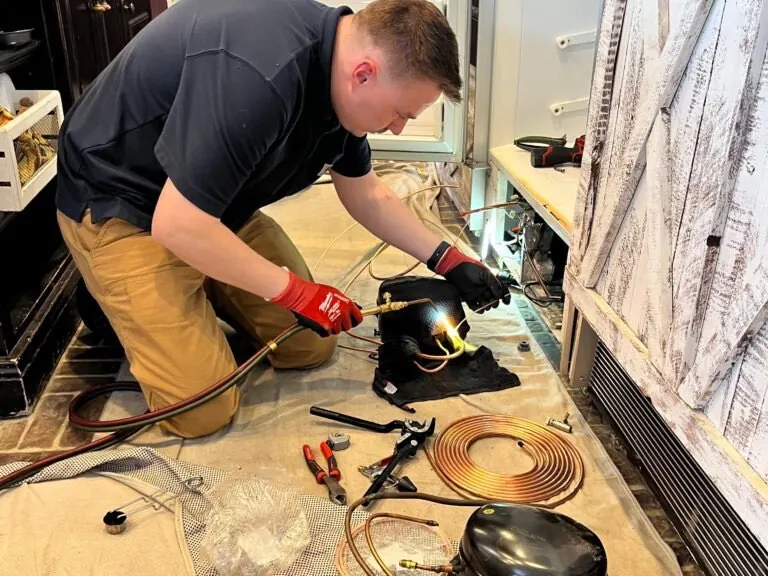

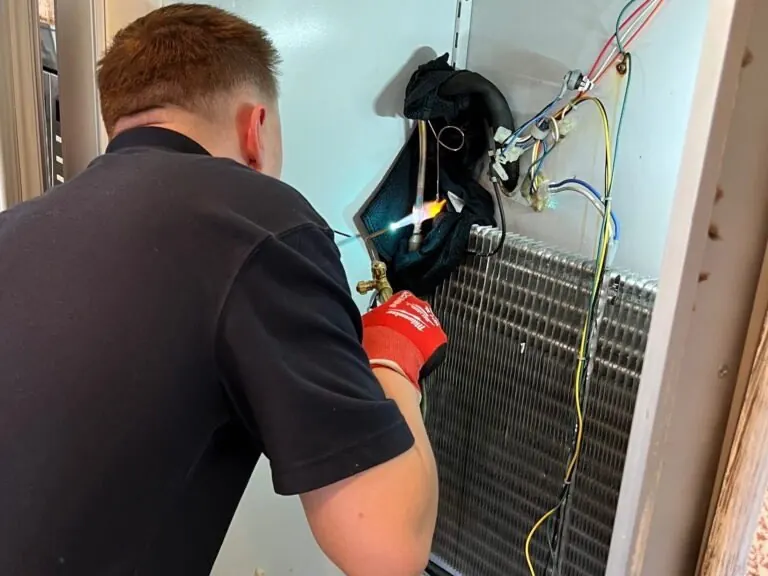

We replaced the seized compressor with a new genuine Sub-Zero OEM compressor and installed a new evaporator coil so the freezer could reach safe sub-zero temperatures. Aluminum evaporators can develop microscopic leaks with age; a new coil means a leak-free system and full heat absorption.
We replaced the heat exchanger and the liquid-line drier so the refrigerant stays clean and moisture-free, preventing the restrictions that often kill older 500 Series units. Using original parts keeps the capillary tube dimensions matched to the system's pressure requirements.
Built in the 1980s, the freezer used R12, the standard of its time. R12 is no longer produced under environmental regulations, so we performed a professional retrofit:
A new Sub-Zero can cost more than $15,000. Restoring a 500 Series keeps your custom cabinetry intact and gives the appliance many more years for far less. If your built-in freezer is clicking, humming or not staying cold anywhere from Henderson and Summerlin to Boulder City, have a sealed-system specialist look at it. We also service Wolf and Cove appliances.
Yes. R12 is no longer produced, so the system is flushed and retrofitted to a modern refrigerant during the repair, as we did on this 38-year-old 500 Series freezer.
Often yes: a new Sub-Zero can exceed $15,000, and a rebuild keeps the original cabinetry and fit.
Yes. The compressor, evaporator, heat exchanger and drier in this rebuild were all original parts.
Older Sub-Zero not holding temperature? Call (702) 744-2944 for a sealed-system diagnosis.
