Whirlpool Built-In Refrigerator Compressor Replacement in North Las Vegas: Lokring, No Brazing, No Kitchen Remodel

A built-in Whirlpool side-by-side refrigerator in North Las Vegas stopped cooling because its compressor had failed. We replaced the compressor and the filter drier on its R600a sealed system using Vulkan Lokring mechanical fittings instead of brazing, then evacuated, charged and tested the system. The refrigerator was cooling again the same day, and the owners avoided buying a new built-in unit and remodeling the cabinetry around it.

The call: a built-in refrigerator warming up

A family in North Las Vegas called us when their built-in Whirlpool side-by-side started losing temperature in both the fresh-food and freezer sections. The fans were running and the controls were lit, but the food was warming up. Their first fear was the price of a new built-in refrigerator — and what it would do to the kitchen.

Diagnosis: a failed compressor

Our technician checked the obvious first: clean condenser, running condenser and evaporator fans, no defrost problem, no blocked airflow. Electrical tests and temperature readings across the sealed system showed the compressor was no longer pumping. The rest of the system — the evaporator, condenser and tubing — was in good shape, which made it a strong candidate for repair rather than replacement.

Why replacing a built-in refrigerator is so expensive

A built-in refrigerator isn't just an appliance; it's part of the cabinetry. Replacing one means a new built-in unit, which costs many times more than a freestanding fridge, and the new model's cutout, trim and panel dimensions often don't match the old opening. That can mean resizing cabinets, new panels or trim, countertop work and, in the worst case, a partial kitchen remodel. A sealed-system repair keeps the refrigerator that already fits the kitchen perfectly.

How we replaced the compressor: Vulkan Lokring, no brazing

Like most newer refrigerators, this one runs on R600a (isobutane), a flammable hydrocarbon refrigerant. The traditional way to replace a compressor is brazing the copper lines with a torch. We use the German Vulkan Lokring system instead: a mechanical, permanent and hermetic connection made by pressing a brass Lokring union onto the prepared tube ends with a special assembly tool and LokPrep sealant. There is no open flame anywhere near the refrigerant, the cabinet or the kitchen.

1. Confirmed the diagnosis and safely removed the remaining refrigerant charge.

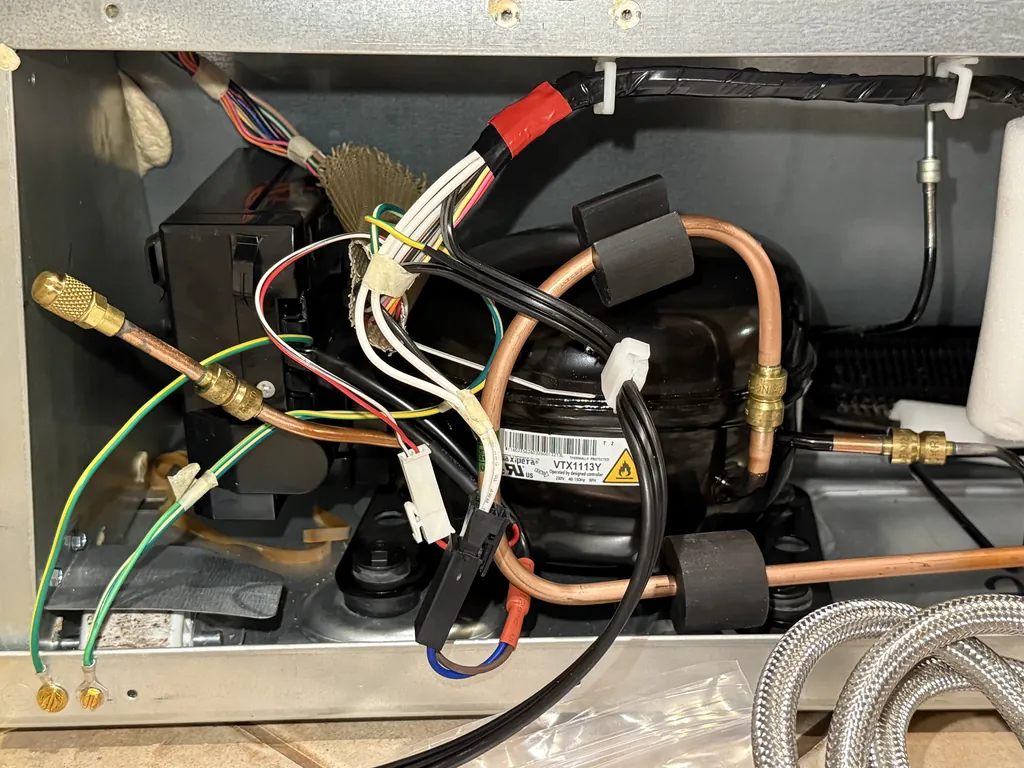

2. Cut out the old compressor and installed the new R600a compressor on its mounts.

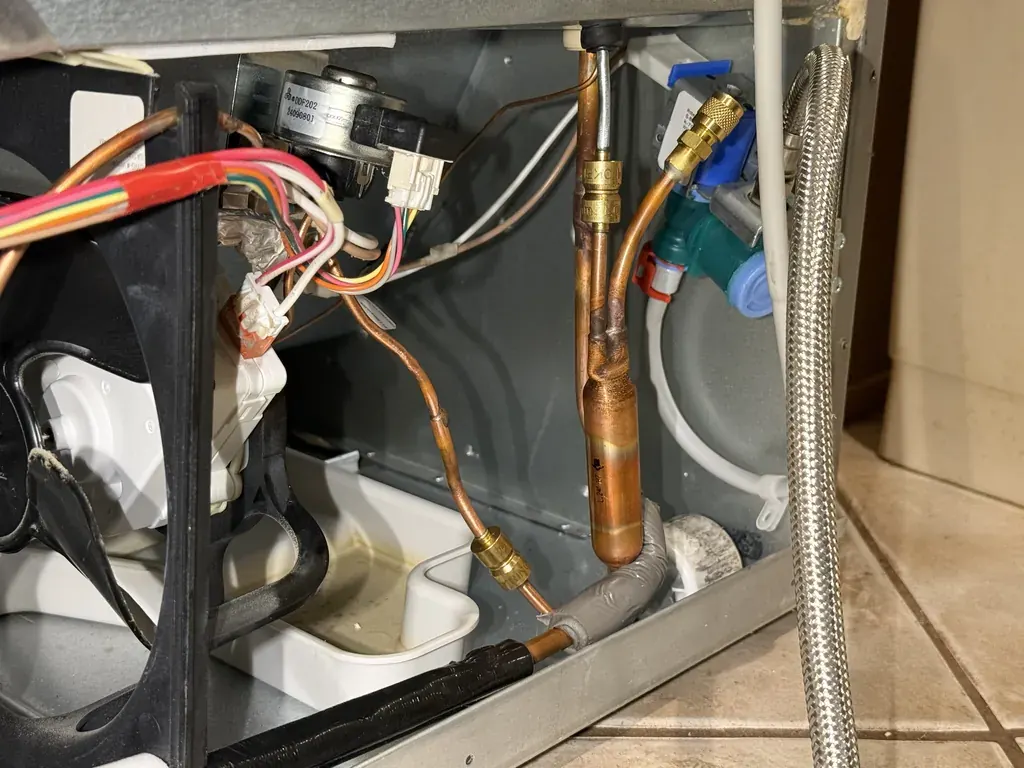

3. Installed a new filter drier — always replaced with the compressor.
4. Made every joint with Lokring connectors: cleaned and deburred tube ends, LokPrep, pressed the unions.
5. Pressure-tested the joints, then pulled a deep vacuum to remove air and moisture.
6. Charged R600a by weight with a precision scale — hydrocarbon charges are small and must be exact.
7. Restarted and monitored temperatures, amperage and cycling until both sections reached normal temperature.

Why Lokring is the better way to work on R600a

• Safer: no open flame near a flammable refrigerant, wiring, plastic liners or wood cabinetry.
• Fast: each joint takes minutes, which shortens the time the system is open.
• Reliable: the connection is permanent and hermetic, designed for the pressures and vibration of refrigeration systems.
• Clean: no heat damage to insulation, panels or nearby parts — important in a tight built-in machine compartment.

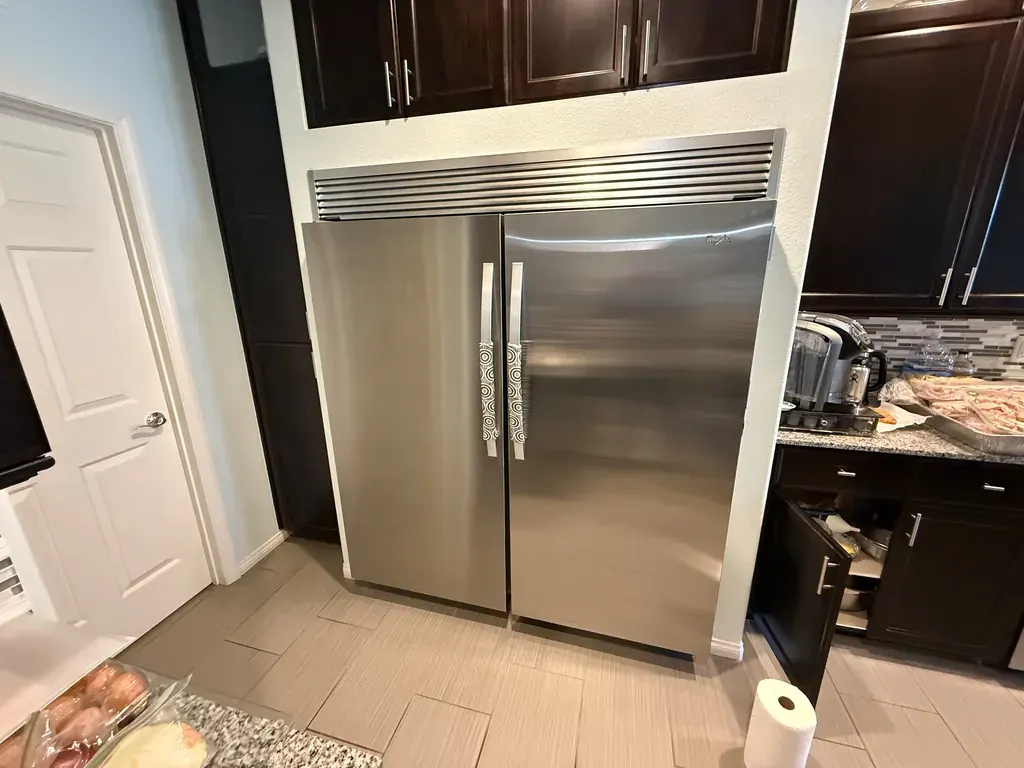

Result: cold again, no remodel

The refrigerator reached normal fridge and freezer temperatures the same day. The owners kept the built-in that fits their kitchen, skipped the cost of a new unit and the remodeling that would have come with it, and were especially happy that nothing about the kitchen had to change. Compressor replacement on a refrigerator typically runs $900–$1,800, a fraction of the cost of replacing a built-in.

Repair or replace a built-in refrigerator?

Repair usually makes sense when the cabinet, doors, liners and the rest of the sealed system are in good condition, which is the case for most built-ins that fail in their first 10–15 years. Replacement is worth considering when the evaporator or condenser is also damaged, the liners are cracked, or the unit is very old. We'll tell you honestly which one makes sense. For other built-in brands, see our GE Monogram built-in guide and Sub-Zero repair.

Frequently asked questions

Can a built-in refrigerator compressor be replaced?

Yes. On this Whirlpool built-in we replaced the compressor and filter drier, recharged the R600a system and had it cooling the same day.

What is Lokring?

Vulkan Lokring is a German mechanical tube-joining system. Brass unions are pressed onto the tube ends with a special tool and sealant, making a permanent, hermetic joint with no brazing or open flame.

Is it worth repairing a built-in refrigerator?

Usually. A new built-in costs many times more than a sealed-system repair and often doesn't fit the existing cabinet opening without remodeling.

Do you repair refrigerators in North Las Vegas?

Yes, across North Las Vegas, Las Vegas, Henderson and Boulder City.
