Scotsman Ice Machine Bin Restoration and Repair in Las Vegas: Custom Stainless Frames and New Optical Ice Sensors
A Las Vegas business had two problems with its Scotsman ice machine: the access-door frames on the large ice storage bin had corroded badly enough to draw a health department warning, and the ice machine kept alternating between overfilling the bin and not making ice at all. The cause of the second problem was the optical ice sensors, coated with calcium scale until they could no longer see the ice. We replaced the sensors, then removed the corroded frames and wet insulation and fabricated and installed new stainless steel frames — for about a third of the cost of a new bin. The bin passed reinspection.
| Equipment | Scotsman modular ice machine on a Scotsman ice storage bin |
|---|---|
| Location | Las Vegas, NV |
| Problem 1 | Corroded bin door frames, health department warning; a new bin costs about $8,500 (2026 pricing) |
| Problem 2 | Ice machine overfilling the bin, then stopping harvest altogether |
| Root cause | Calcium scale on the optical ice sensors; corrosion and water-soaked insulation around the bin openings |
| Work done | New optical sensors wired to the controller; frames removed, corrosion and wet insulation cleared, custom stainless frames fabricated and installed |
| Result | Ice machine harvesting and stopping correctly; health reinspection passed at ~1/3 the cost of a new bin |
An unusual request: save the ice bin
A Las Vegas business called us with two problems. The first was not a typical repair: during an inspection, the health department issued a warning about the large Scotsman ice storage bin. The stainless frames around its access doors had corroded, rust was running down the front, and the insulation behind them was wet. A new bin of that size costs about $8,500 at 2026 prices, plus delivery and installation.
The second problem was the ice machine itself: some days it overfilled the bin until ice piled against the doors, other days it simply stopped making ice.
Why the ice machine overfilled and then stopped
Modern Scotsman machines use optical ice sensors — infrared emitters and receivers — to watch each harvest. The controller uses them to confirm that a batch of ice has dropped off the evaporator and to detect when the bin is full. When the sensors can see clearly, the machine makes ice until the bin is full, stops, and starts again as ice is used.

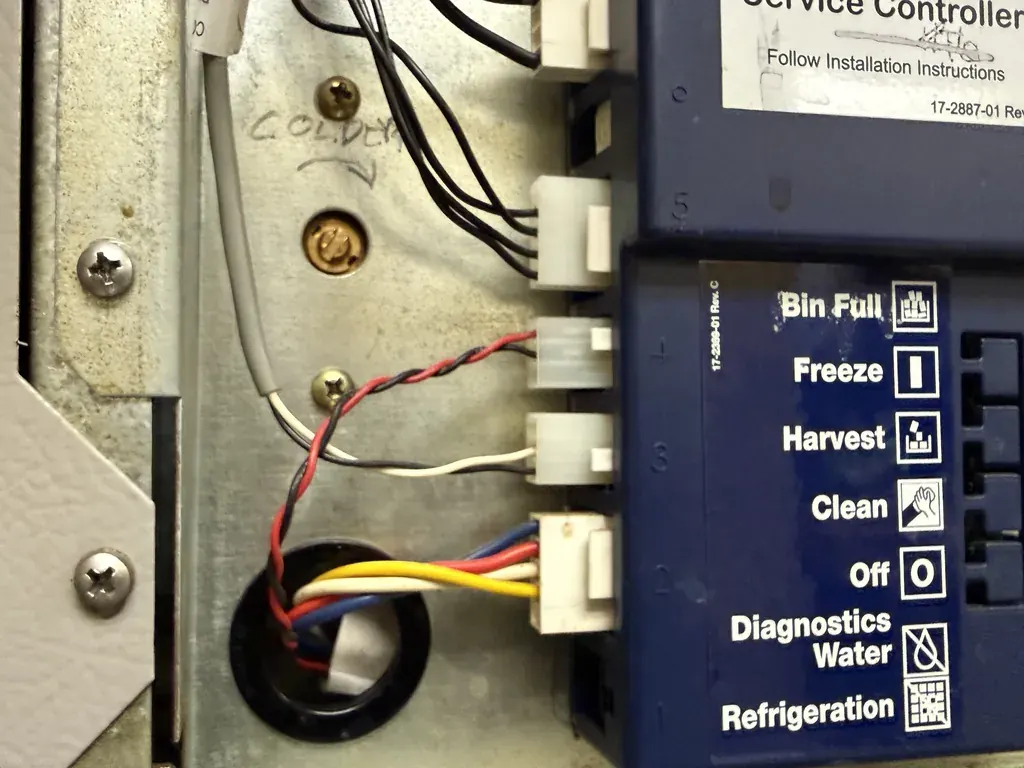

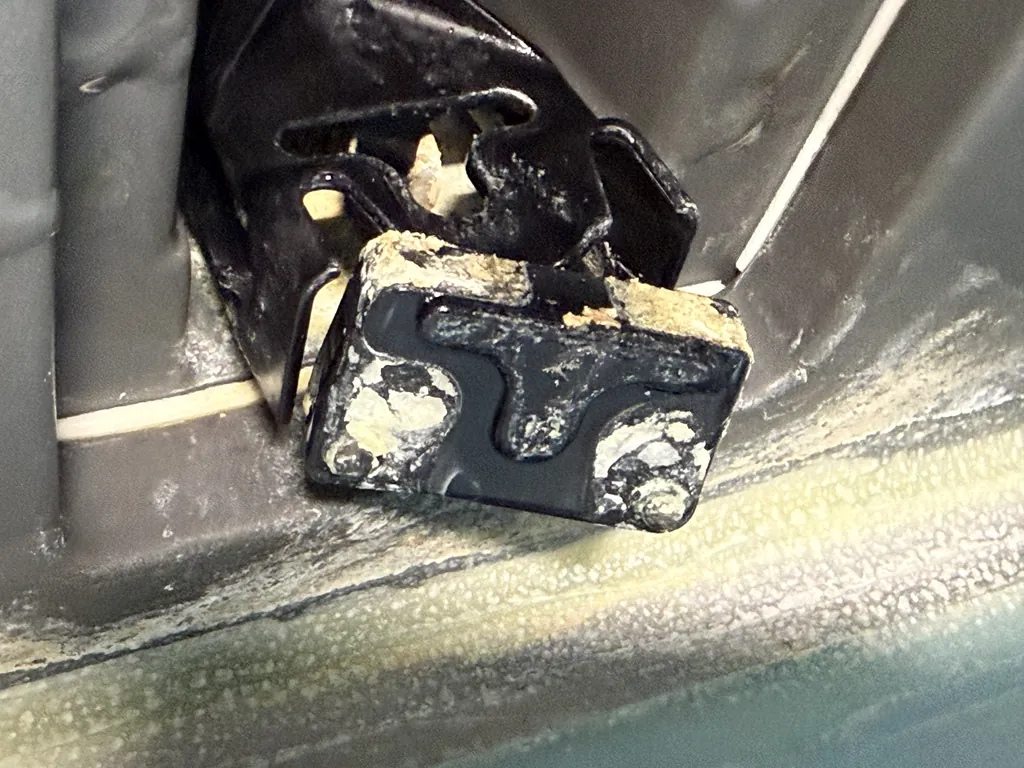

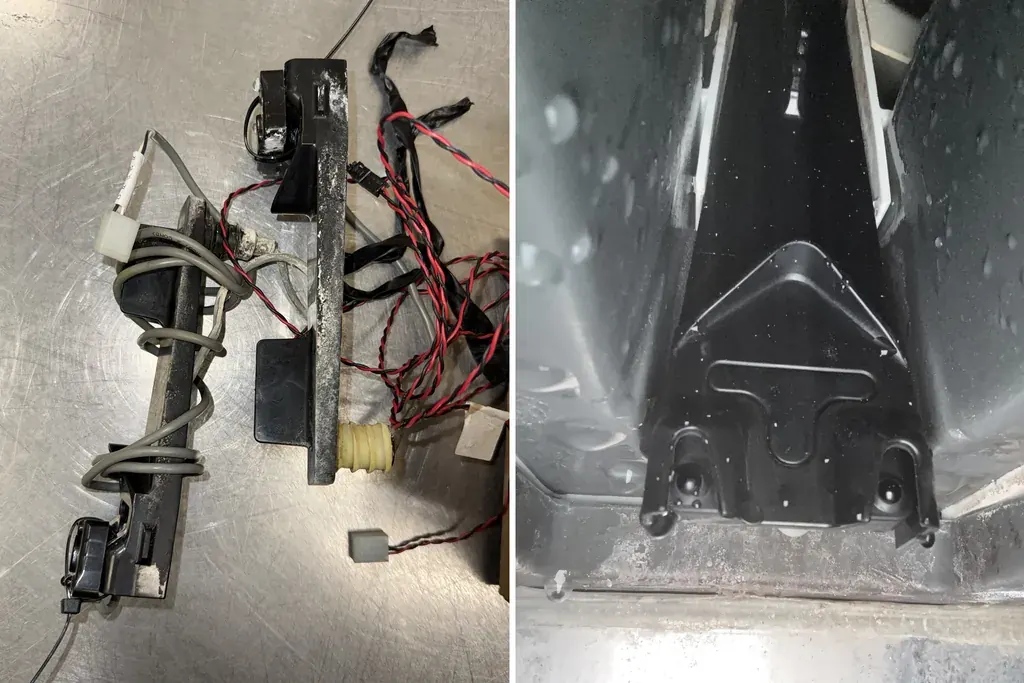

Las Vegas water is very hard. Over time calcium scale built up on the sensor lenses until they were practically blind. Depending on how the light scattered through the scale, the controller either missed the full bin and kept harvesting (overfill), or thought the ice had not dropped and stopped the cycle (no ice). We replaced both sensors, connected them to the controller, descaled and sanitized the ice machine, and verified several freeze and harvest cycles plus the bin-full shutoff.
Restoring the bin instead of replacing it
We had never restored an ice bin before, and we said so. But the bin's body, liner and doors were sound; only the frames around the openings and the insulation behind them were damaged. We quoted a fixed budget of about one third of the price of a new bin, the owner approved it, and we got to work:

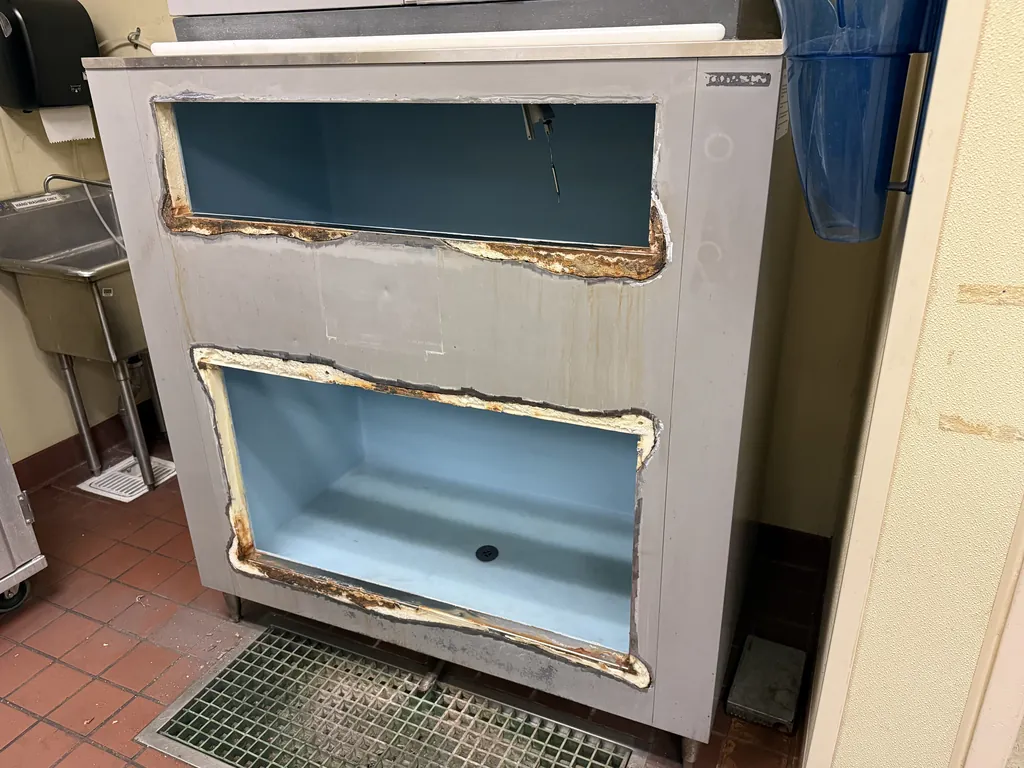

- Demolition. Removed the corroded frames around both access openings.
- Corrosion removal. Cleaned every trace of rust and corrosion from the edges and surrounding panels.
- Insulation. Cut out the water-soaked insulation, which no longer insulated and could grow mold, and filled the gaps with new closed-cell foam.
- Measuring and fabrication. Measured both openings and fabricated new frames from food-service stainless steel.
- Installation. Installed the frames and sealed every seam with food-safe sealant so meltwater can't get behind them again.
- Sanitizing. Cleaned and sanitized the bin before the ice machine was put back into service.

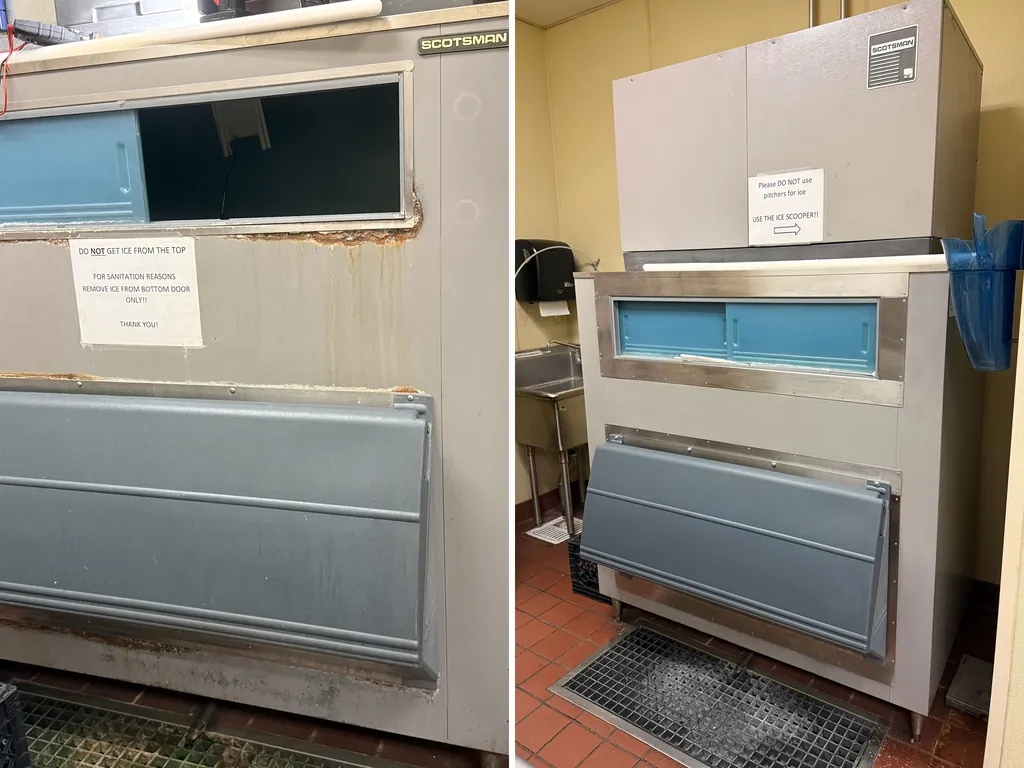

Result: inspection passed, $5,000+ saved
The restored bin looks right, seals properly and passed the health department reinspection. With the new sensors the ice machine fills the bin, stops on time and keeps up with demand. The owner kept an expensive bin in service for roughly a third of the replacement price.
Keeping an ice machine inspection-ready in Las Vegas
- Descale and sanitize the ice machine every six months — more often with hard water or heavy use.
- Use a water filter rated for ice machines and change its cartridge on schedule.
- Watch for ice piling up against the bin doors or the machine stopping with an empty bin: both point to the sensors or the controller.
- Deal with rust, cracked seams and wet insulation early. Health inspectors look closely at ice bins because ice is food.
If your machine stops making ice, our commercial ice machine checklist covers what staff can safely check first. A standard commercial service call is $100; an emergency call puts a technician on site within 2 hours for $300.
Frequently asked questions
Why does my ice machine overfill the bin?
Usually the bin-full sensing has failed. On optical-sensor machines like this Scotsman, calcium scale on the sensors stops the controller from seeing a full bin.
Why did my ice machine stop making ice?
Common causes are scaled or failed ice sensors, a scaled evaporator, a water supply problem or a refrigeration fault. Here, scaled optical sensors made the controller stop the harvest.
Can a corroded ice bin be restored instead of replaced?
Often, if the body and liner are sound. We replaced the corroded frames and wet insulation with new stainless frames for about a third of the cost of a new bin.
How much is a commercial service call?
A standard commercial call is $100. An emergency call with a technician on site within 2 hours is $300. Repairs are quoted in writing before work starts.
